Household & Personal Care,Condiment Filling Line
Sauce filling machine

The condiments filling machine is consists of bottle washing,filling and capping functions. It can used for PET/Glass bottle container. It is used in the requirement of sauce, like soy sauce.
Features
Condiments filling machine consists of the equipment as below followings:
● The main frame of equipment is welded from 120X60X6mm high-strength carbon steel.
● The main support of the equipment frame is arranged in a "well" type, and the distance between two adjacent supports does not exceed 600mm.

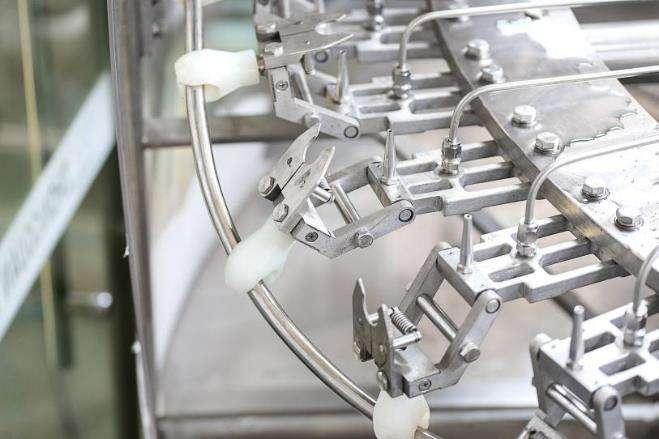

● Using the company's original flipping bottle clamp, the bottle clamp stuck the bottleneck part, to avoid the traditional bottle clamp on the rubber clamp on the bottle thread part of the possible pollution.
● Bottle clamp and lifting mechanism sliding sleeve are made of German igus corrosion resistant maintenance free bearings.
● Filling valve structure design is reasonable, the high speed, high precision. All parts using CNC machining center equipment.
● The sealing head adopts the magnetic constant torque device, when the swivel head is removed through the cover plate, the top cap mold covers the cap, and the cap is straightened to ensure that the cap is positioned correctly in the swivel cover mold to ensure the sealing quality.
Application fields
Condiments filling machine is widely used in the requirement of sauce, like soy sauce.

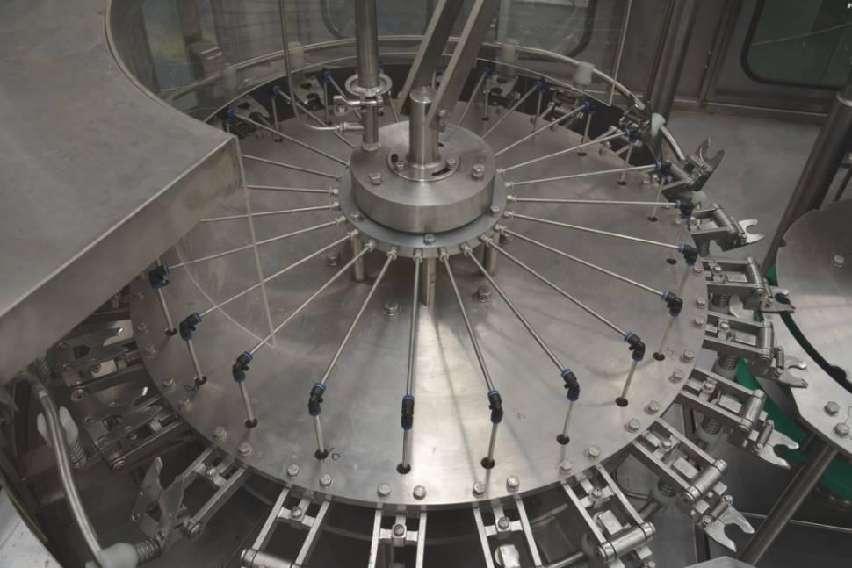

Rinser part

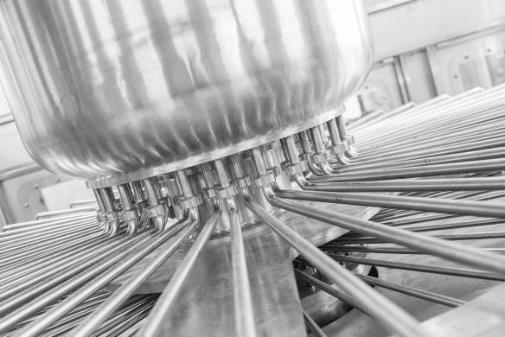

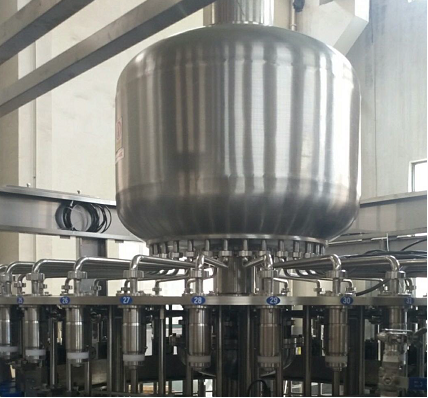

Sauce filling part

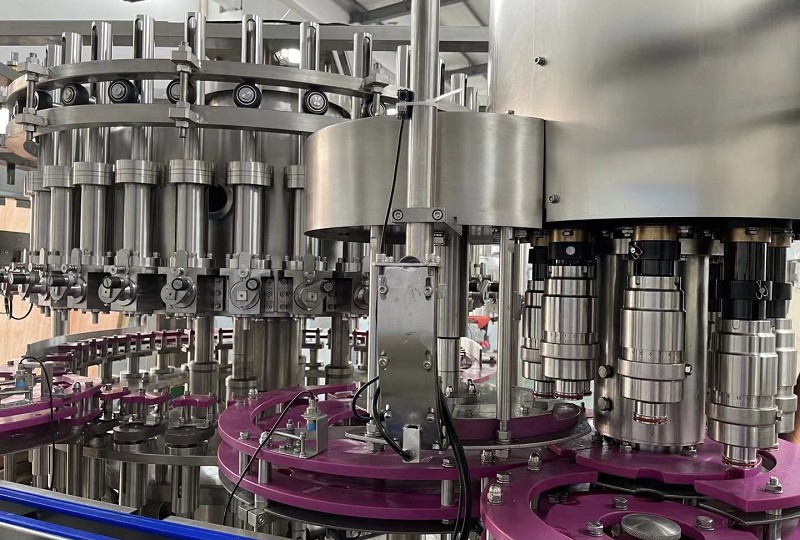

Capping part

Household & Personal Care,Condiment Filling LineApplication: Household & personal care, condiments, oil, alcohol. Applied Containers: PET,HDPE and glass bottles with various capacities and shapes. Filling System: Mechanical valve, flowmeter valve and weighing valve. Product’s scope: Blowing molding(depalletizer)system, air compressor system, filling system , filled bottle conveying system, labelling machine, encaser machine, palletizer, electric control, engineering design and construction. |
